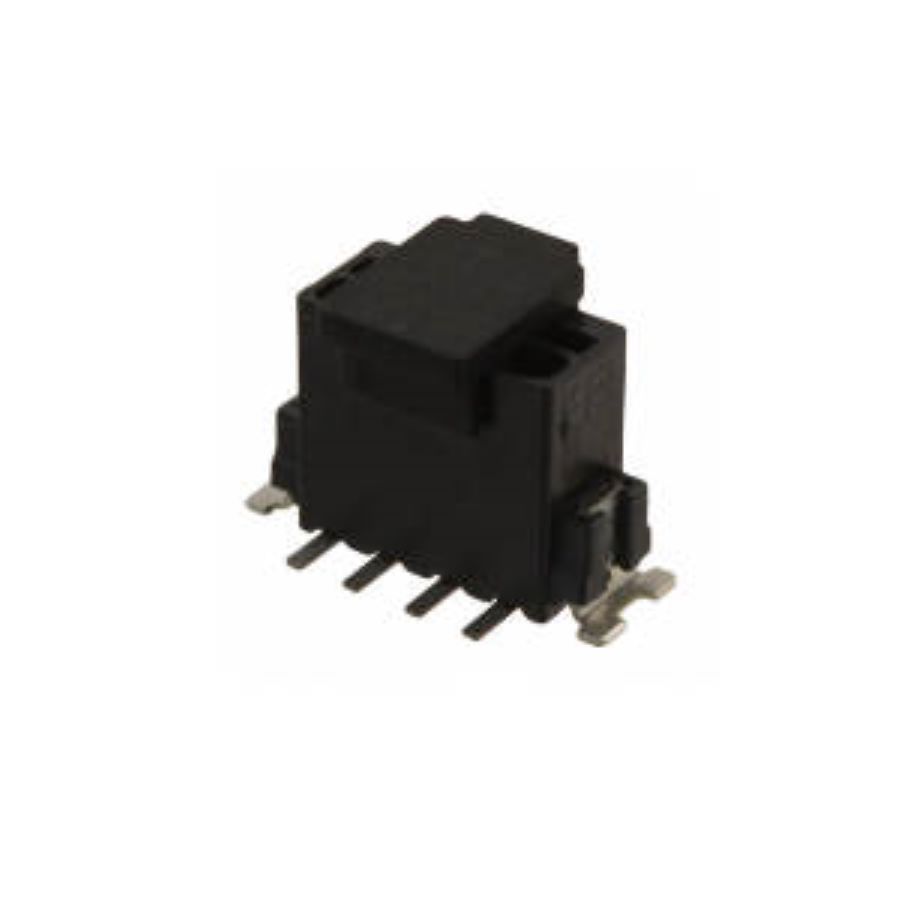

1771114
Manufacturer:
Phoenix Contact
Mfr.Part #:
1771114
Datasheet:
Description:
Terminal Blocks SMD/SMT 4 2.5 mm 5 A 150 V 26 AWG to 20 AWG
| Parameter | Value |
|---|---|
| Length | 5 mm |
| Width | 12.8 mm |
| Termination | Spring Clamp |
| Number of Pins | 4 |
| Height | 9 mm |
| Packaging | Reel |
| Voltage Rating | 150 V |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Voltage | 150 V |
| Weight | 2.449994 g |
| Contact Plating | Tin |
| Pitch | 2.5 mm |
| Current | 5 A |
| Current Rating | 5 A |
| Max Current Rating | 6 A |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 4 |
| Orientation | Straight |
| Color | Black |
| Number of Contacts | 4 |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Housing Material | Polymer |
| Number of Positions Per Level | 4 |
| Number of Levels | 1 |
| Wire Gauge (Max) | 26 AWG |
| Wire Gauge (Min) | 24 AWG |
| Housing Color | Black |
| Connection Method | Push-In |
| Wire Gauge Range | 26 AWG to 20 AWG |
Stock: 276
Distributors
pcbx
pcbxUnit Price$1.56634
Ext.Price$1.56634
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.56634 | $1.56634 |
| 10 | $1.31472 | $13.14720 |
| 25 | $1.20207 | $30.05175 |
| 50 | $1.09908 | $54.95400 |
| 100 | $1.00492 | $100.49200 |
| 300 | $0.95085 | $285.25500 |
| 500 | $0.89968 | $449.84000 |
